This is perhaps not a thorough description of the history of this aircraft type. Hayabusa became the main fighter aircraft of the Japanese Army Air Force (JAAF) during World War II. Design of the aircraft type was led by Nakajima Hikoki K.K. chief designer Yasumi Koyama and Prof. Hideo Itokawa (who, incidentally, was later opposed to the “Special Attack” or Kamikaze program, but rather, he proposed a version of the German Fieseler Fi-103R “Reichenberg,” the manned variant of the Fi-103 “V-1,” not the manned Okha). By 1927, both the Imperial Japanese Navy, and then by 1932 the Army, had established aircraft designation systems not unlike the 1922 U.S. Navy system, employing English language letters and Arabic and Roman numerals, and in this case, for Army aircraft, the Kitai system or “Ki” is the abbreviation for 機体 meaning kitai or airframe, followed by the airframe project number.

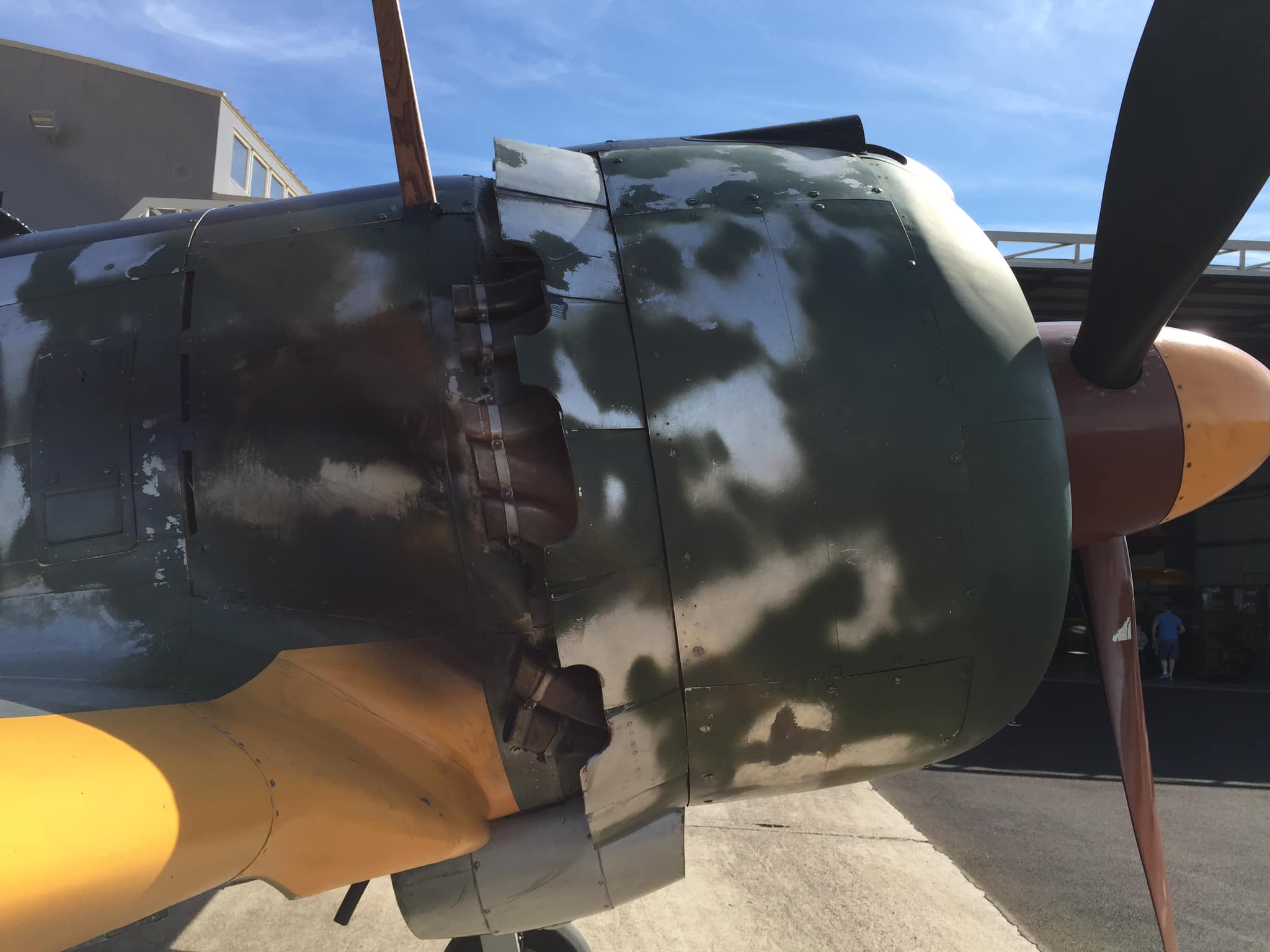

The Hayabusa was an all-metal construction except for fabric control surfaces. Its original design did not provide for pilot armor or self-sealing fuel tanks (later variants provided for both to some extent). It was powered by a Nakajima Ha-25 14-cylinder radial engine (later variants were fitted with the more powerful engines) with an annular air cooler located in front of the engine (this was later replaced by a honeycomb unit under the cowling). Armament varied by version but included a 7.7 mm Type 91 machine gun and a 12.7 mm Ho-103 heavy machine gun (similar to the Browning .50 cal.), both fitted to the top of the cowling and fired through the propeller. It is my understanding that the Ho-103’s slower rate of fire and tendency to jam led some pilots to replace it with a second Type 91 in the field. It could carry two 33 kg. bombs.

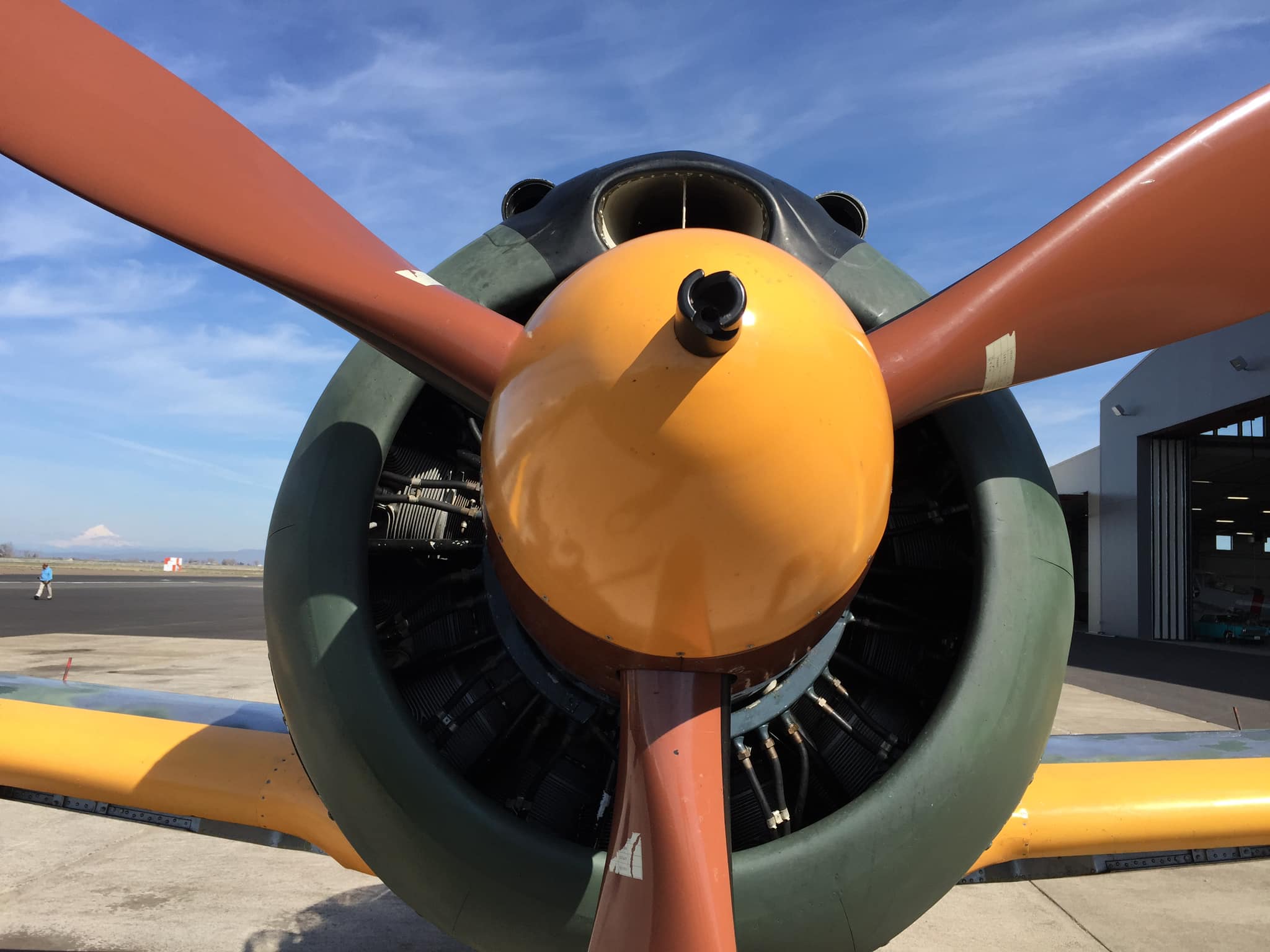

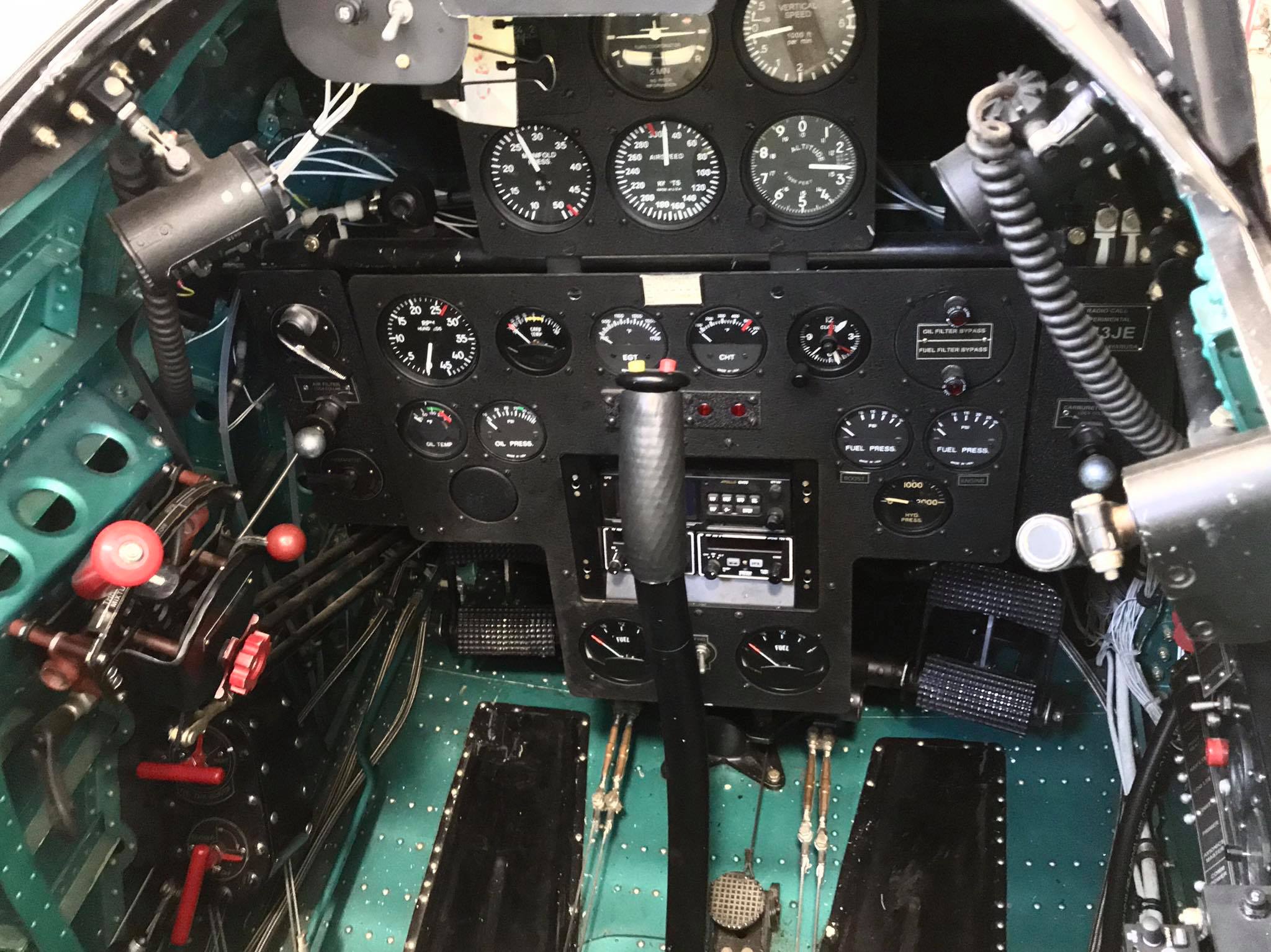

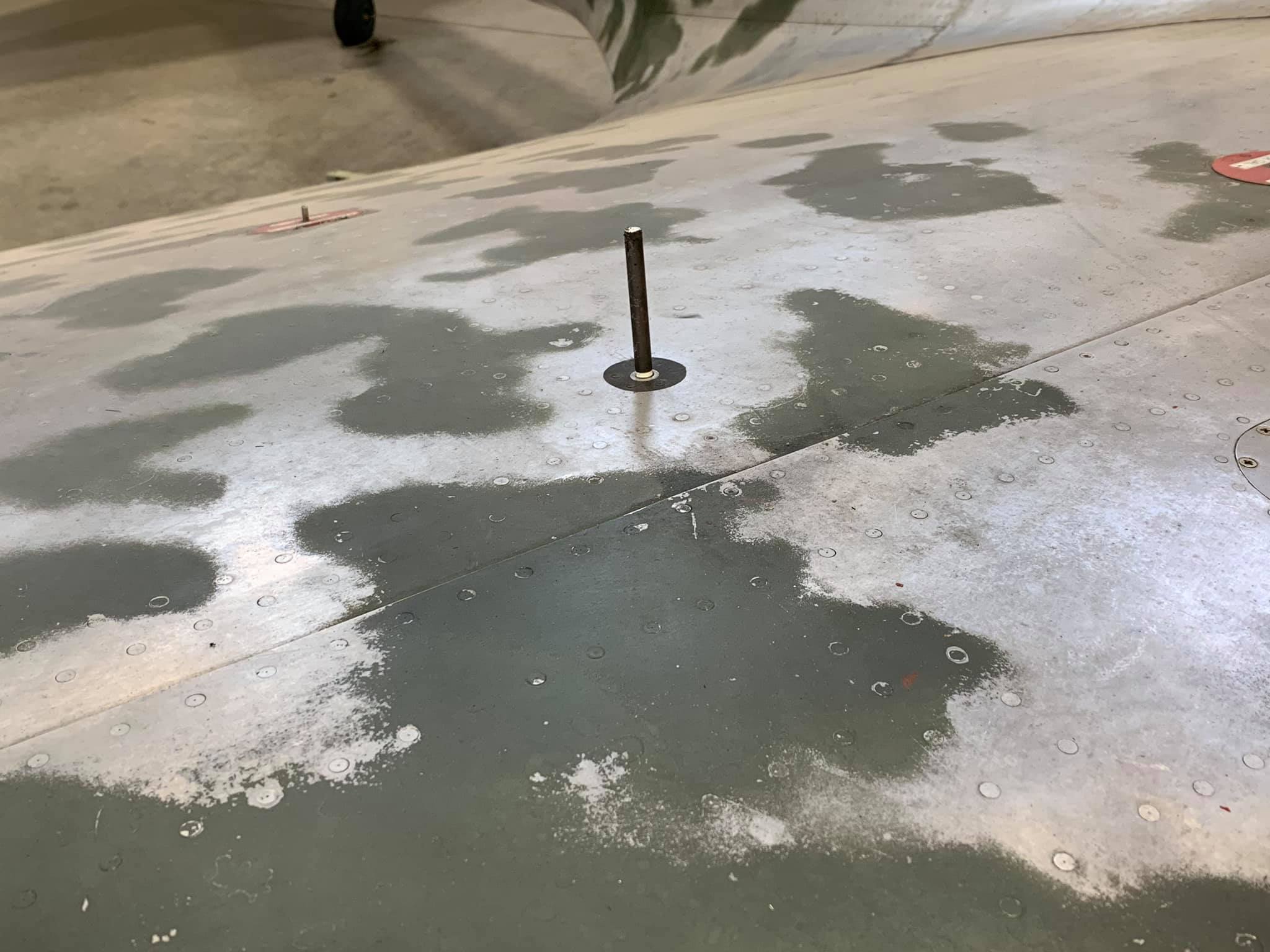

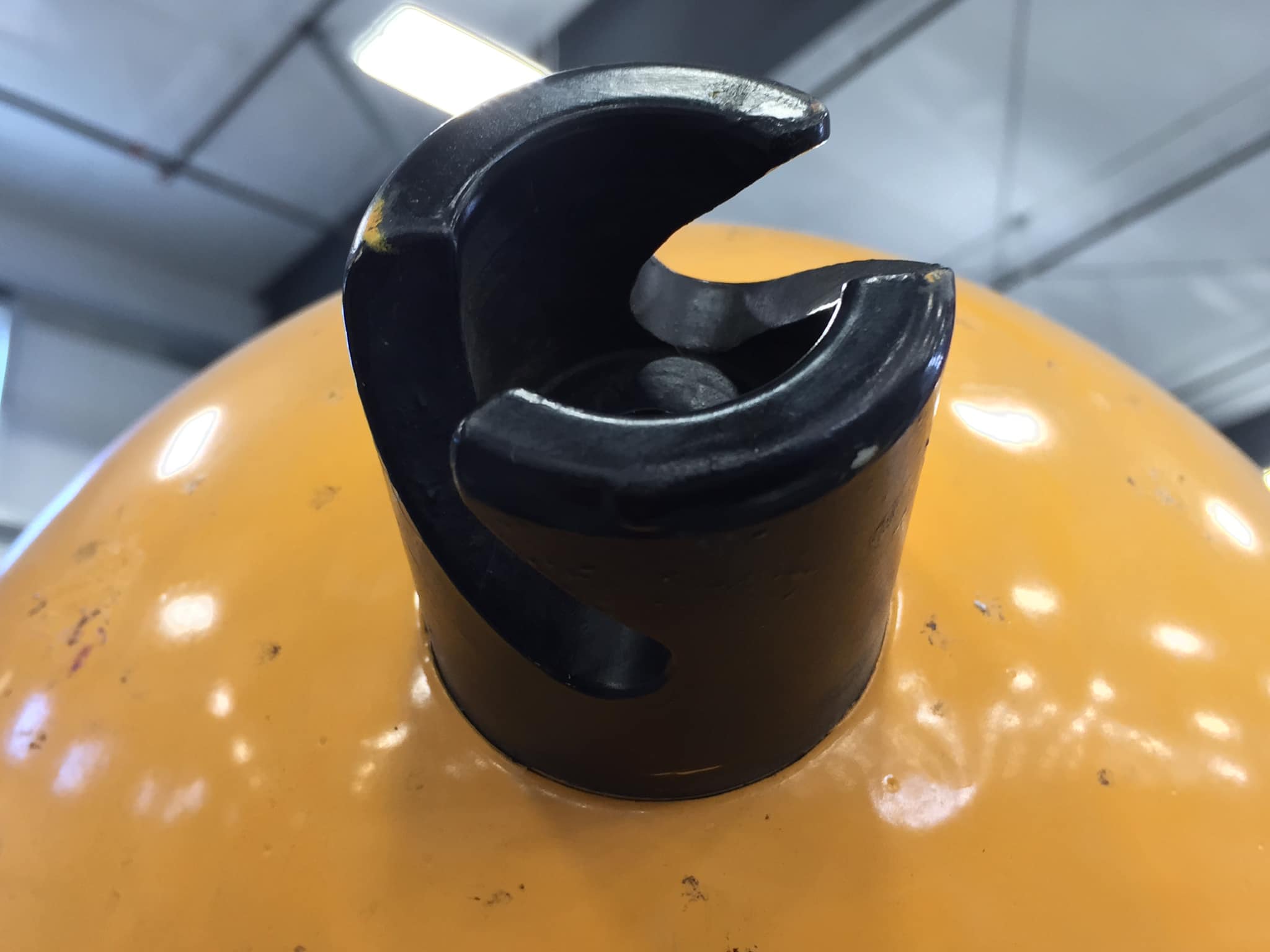

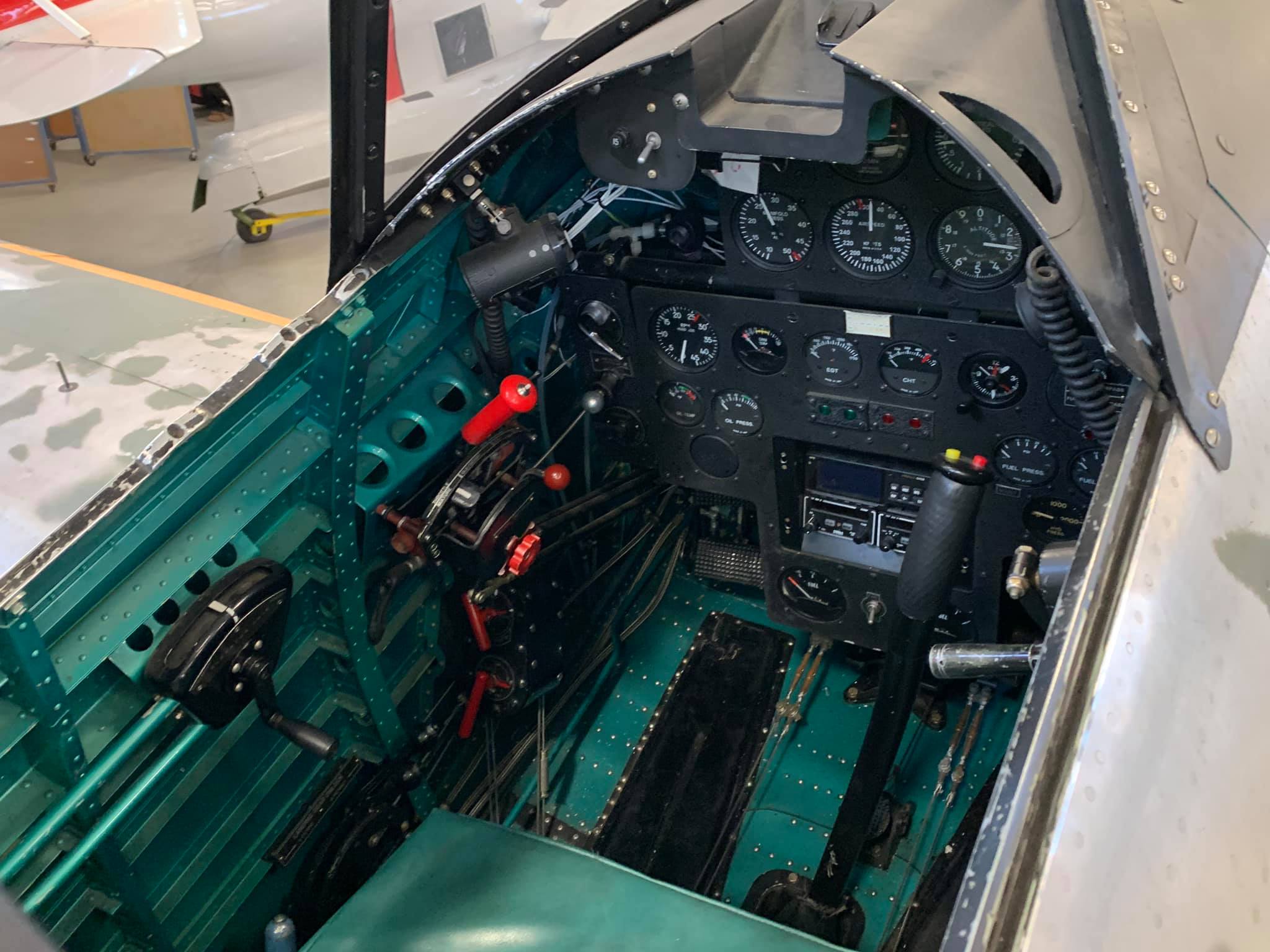

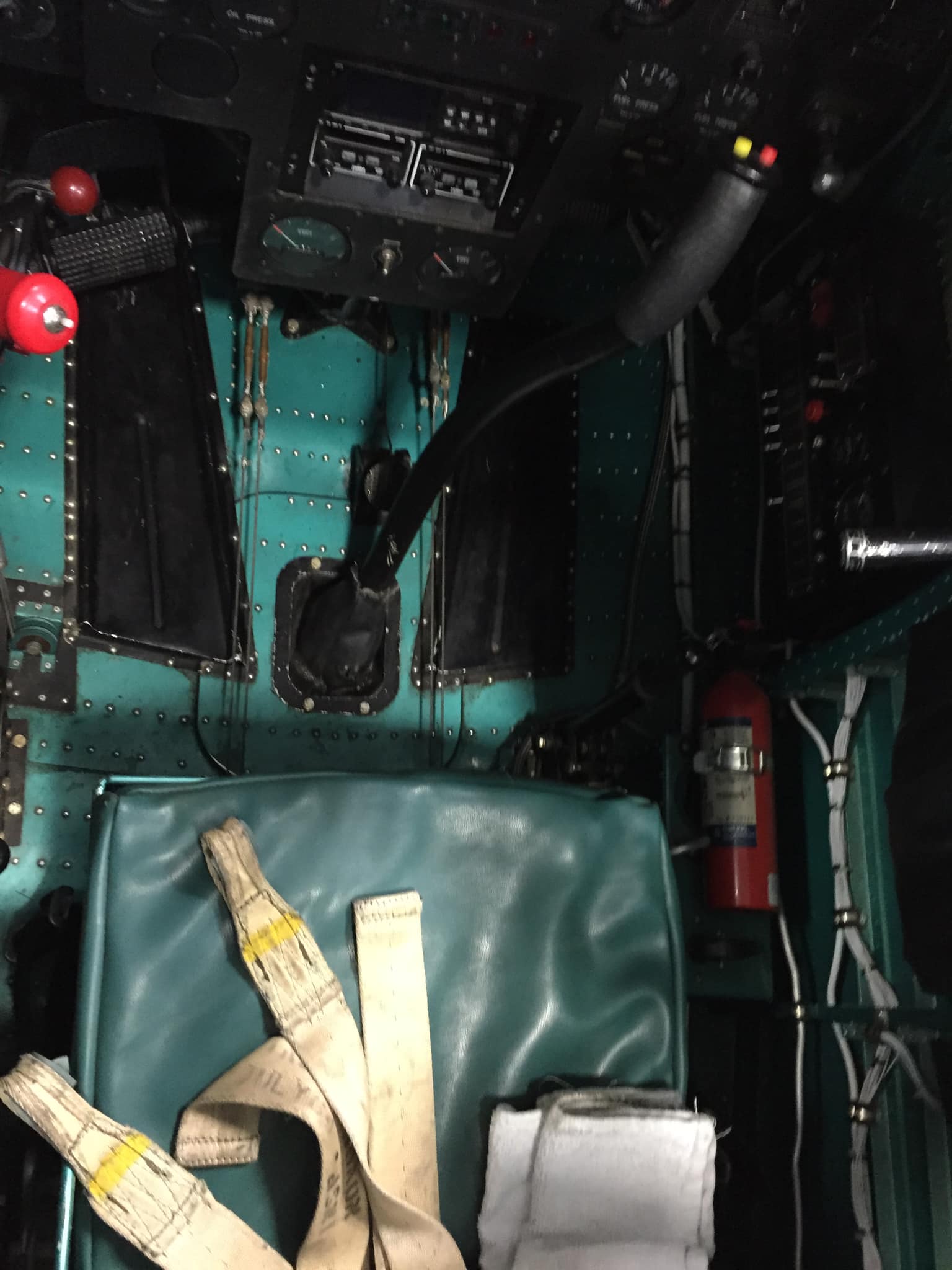

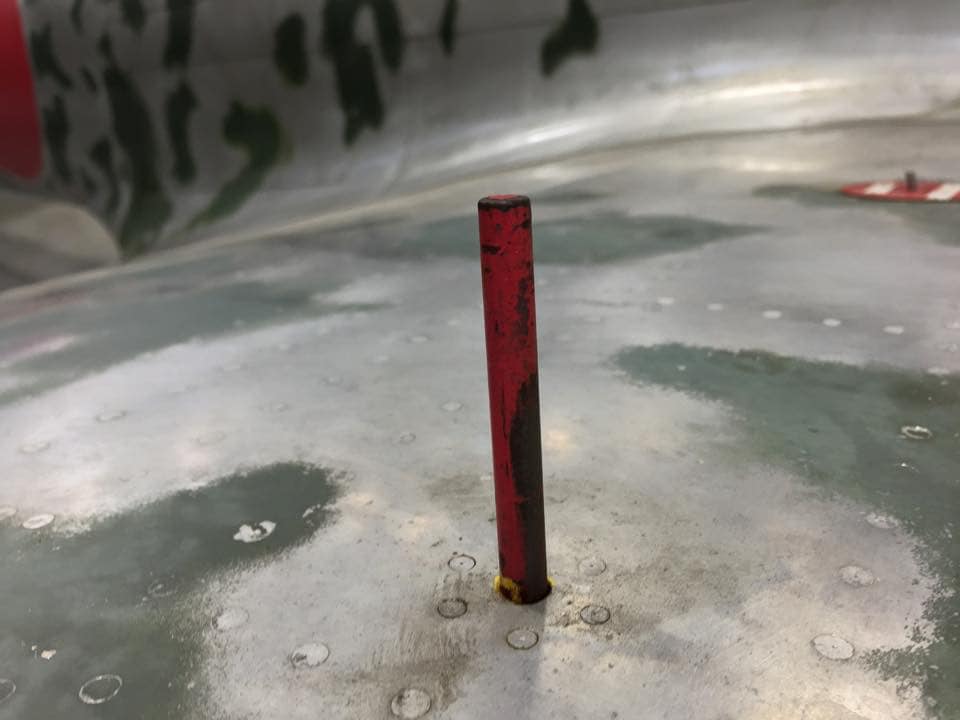

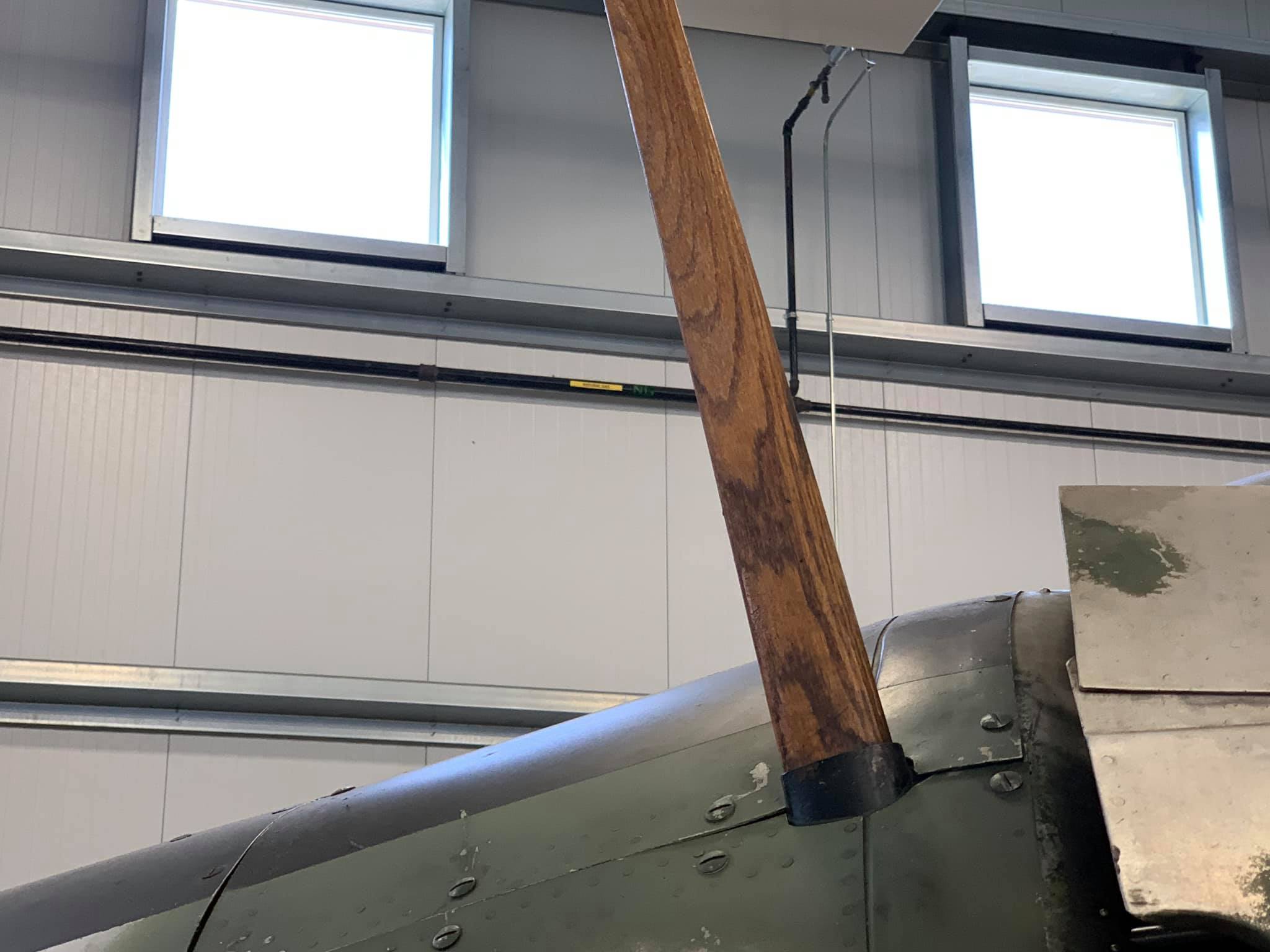

To further the lightness and agility of the aircraft by omitting a battery and engine starter, it was fitted with a Hucks Starter hub or dog in the nose; it also had “combat” or “butterfly” flaps on the wings’ inner trailing edges that added wing surface for improved maneuverability. There was a leather-covered metal pilot’s pull rather than a foot stirrup and a handhold. The Type 89 scope gun sight (no gun sight is on this aircraft) has a cover to protect it from dirt and engine oil during takeoff and is removed by the pilot before combat using a connecting rod through the windscreen. It has mechanical landing gear indicator rods or bayonets attached to the gear struts and protruding through the top of the wings.

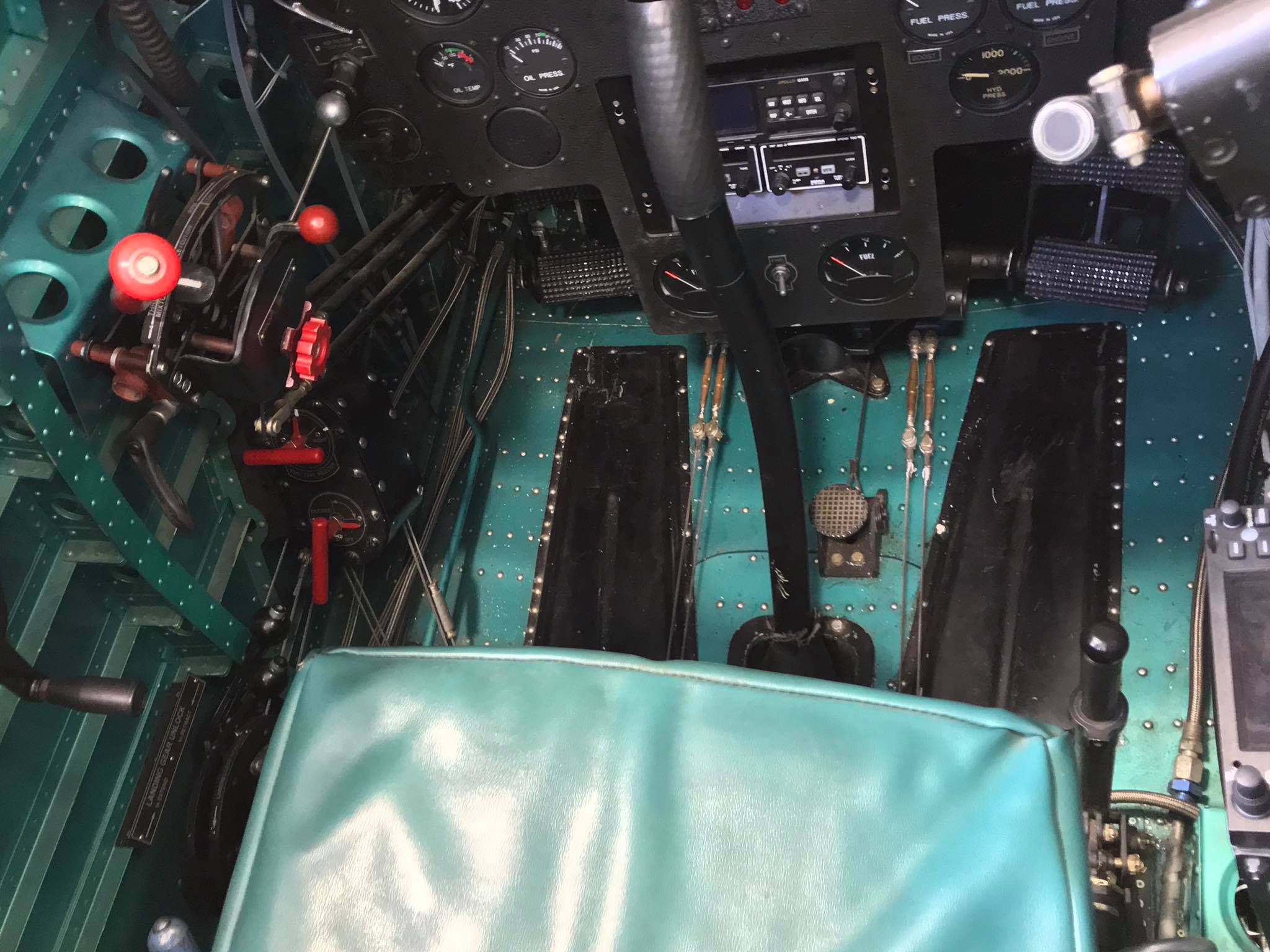

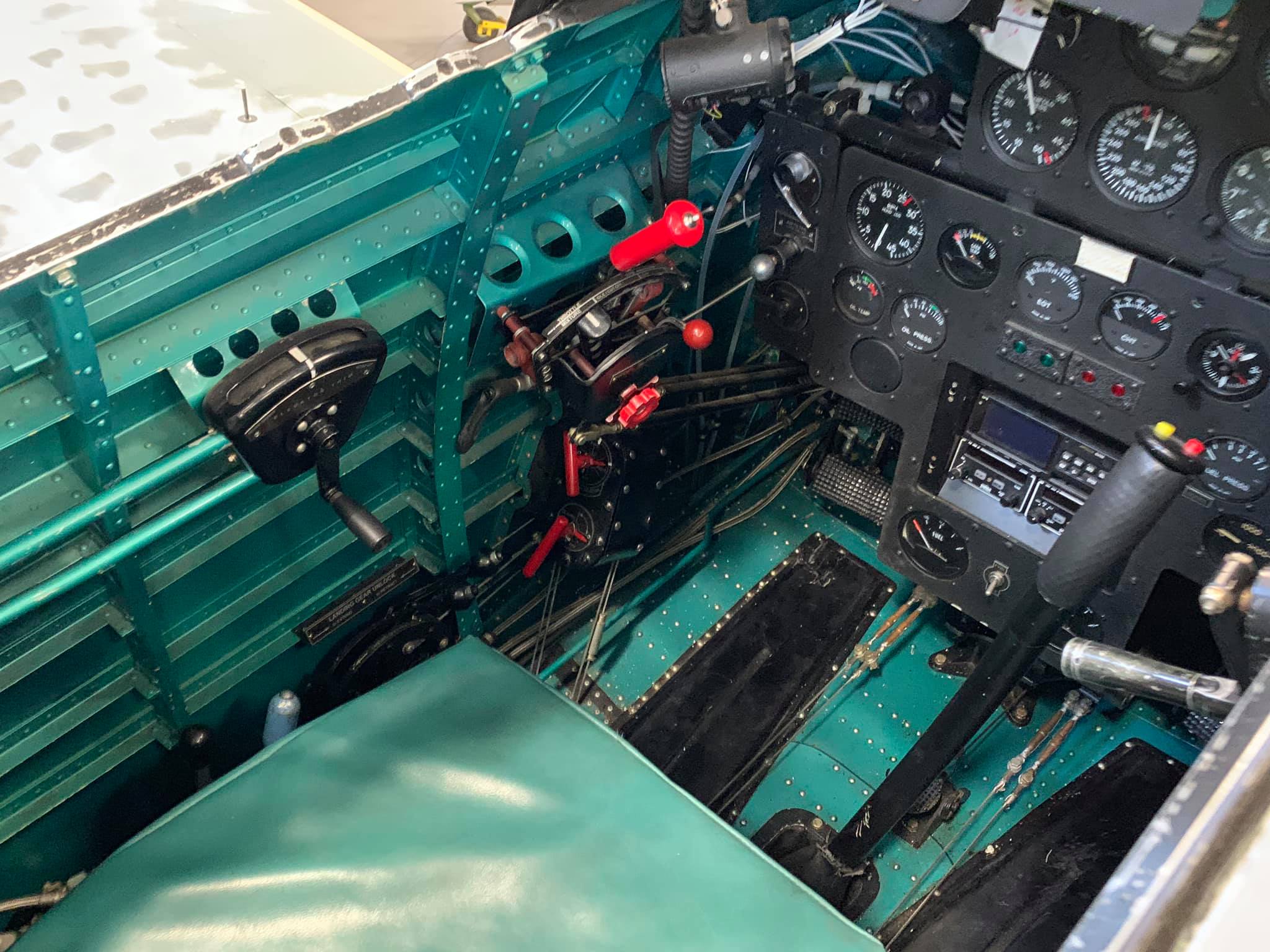

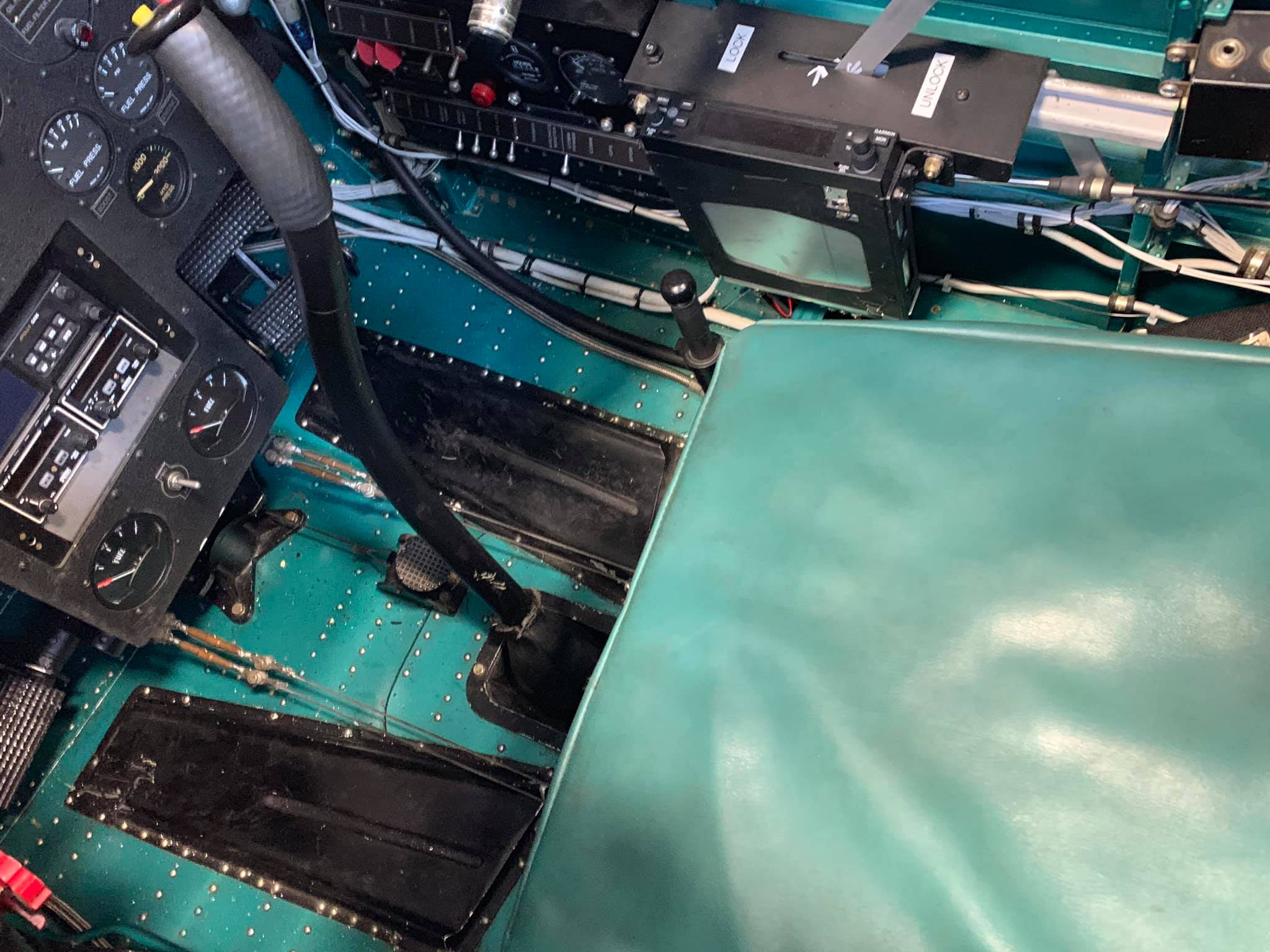

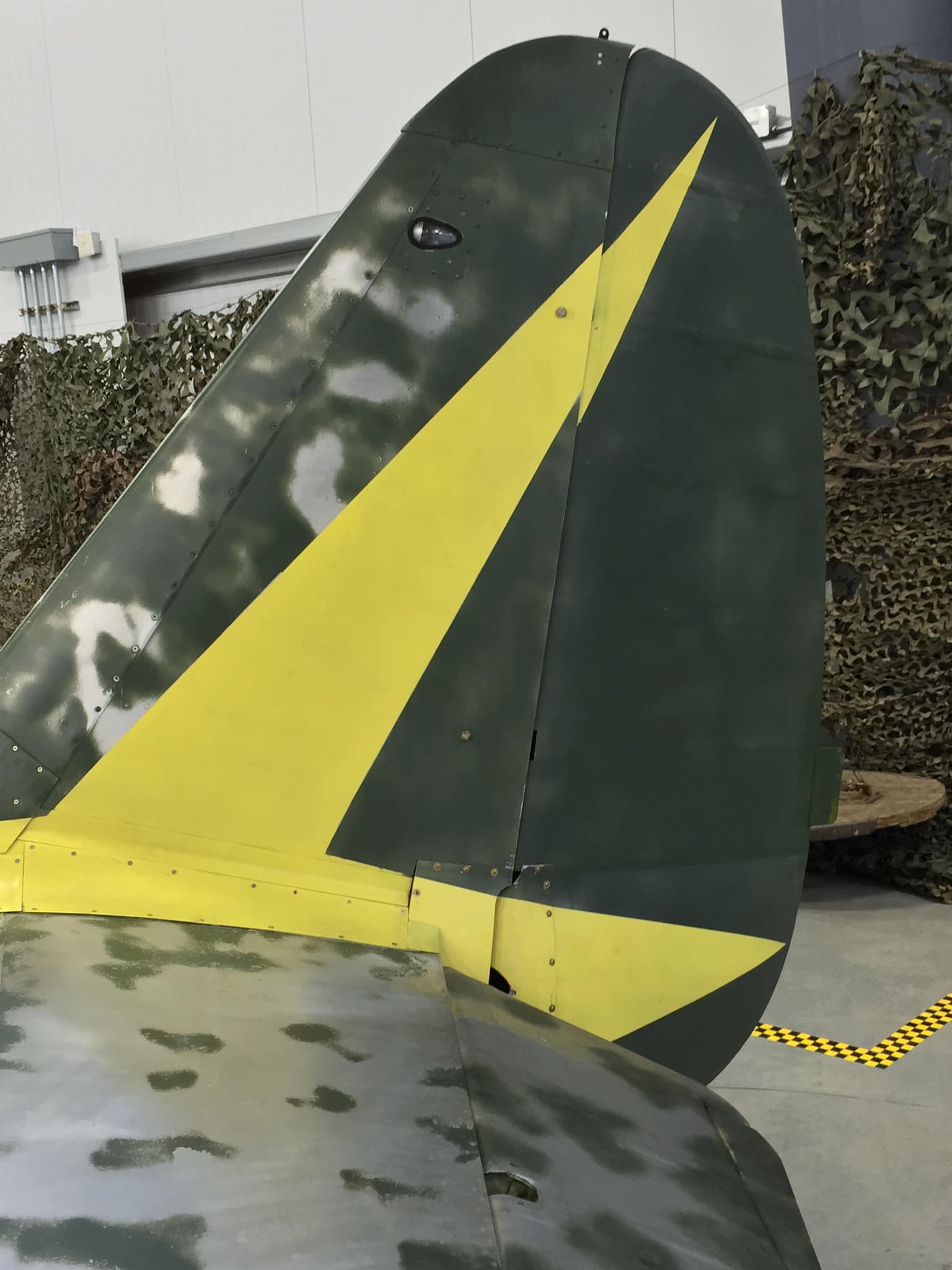

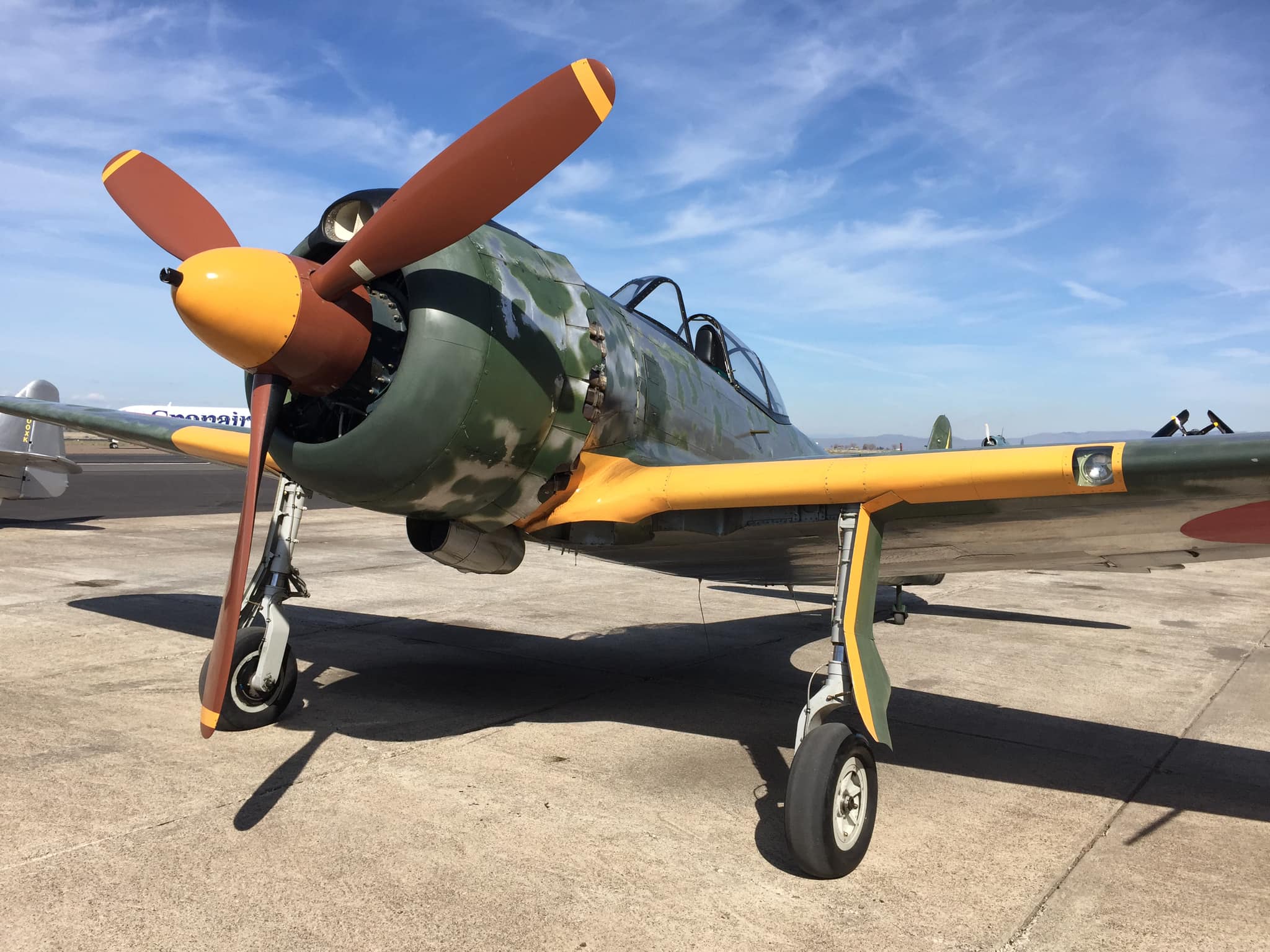

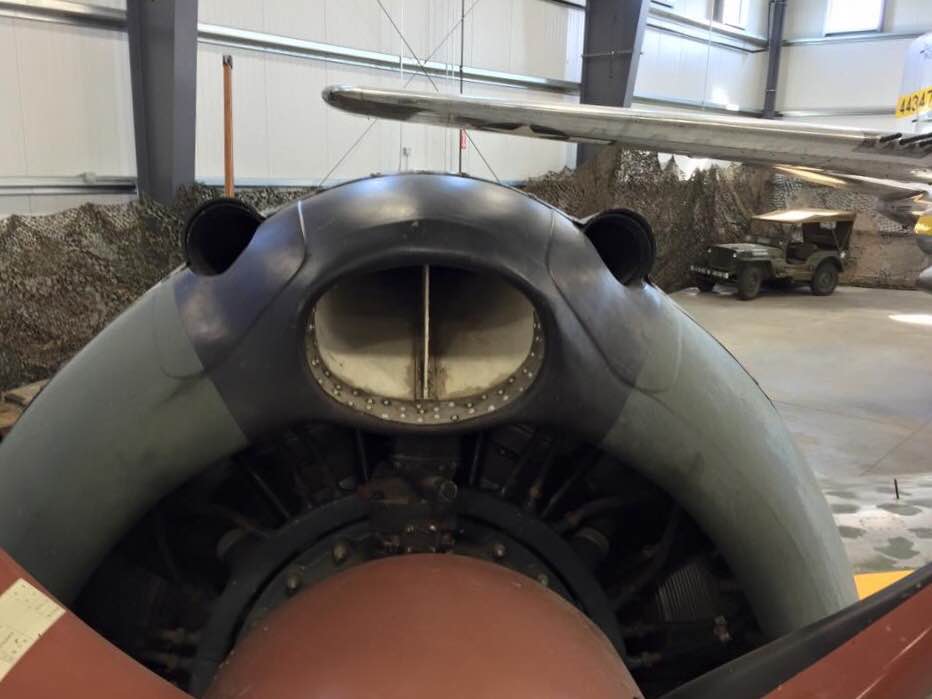

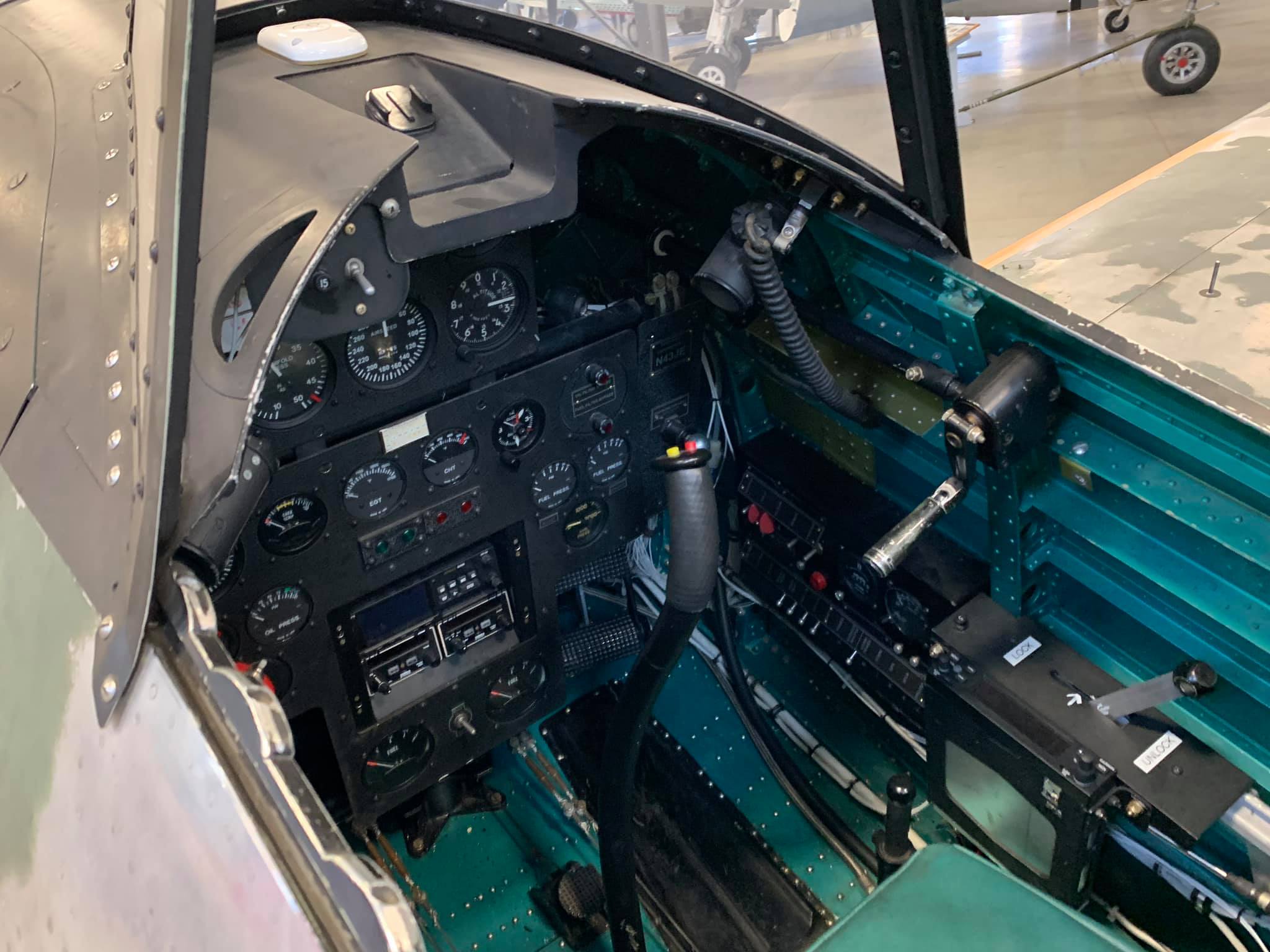

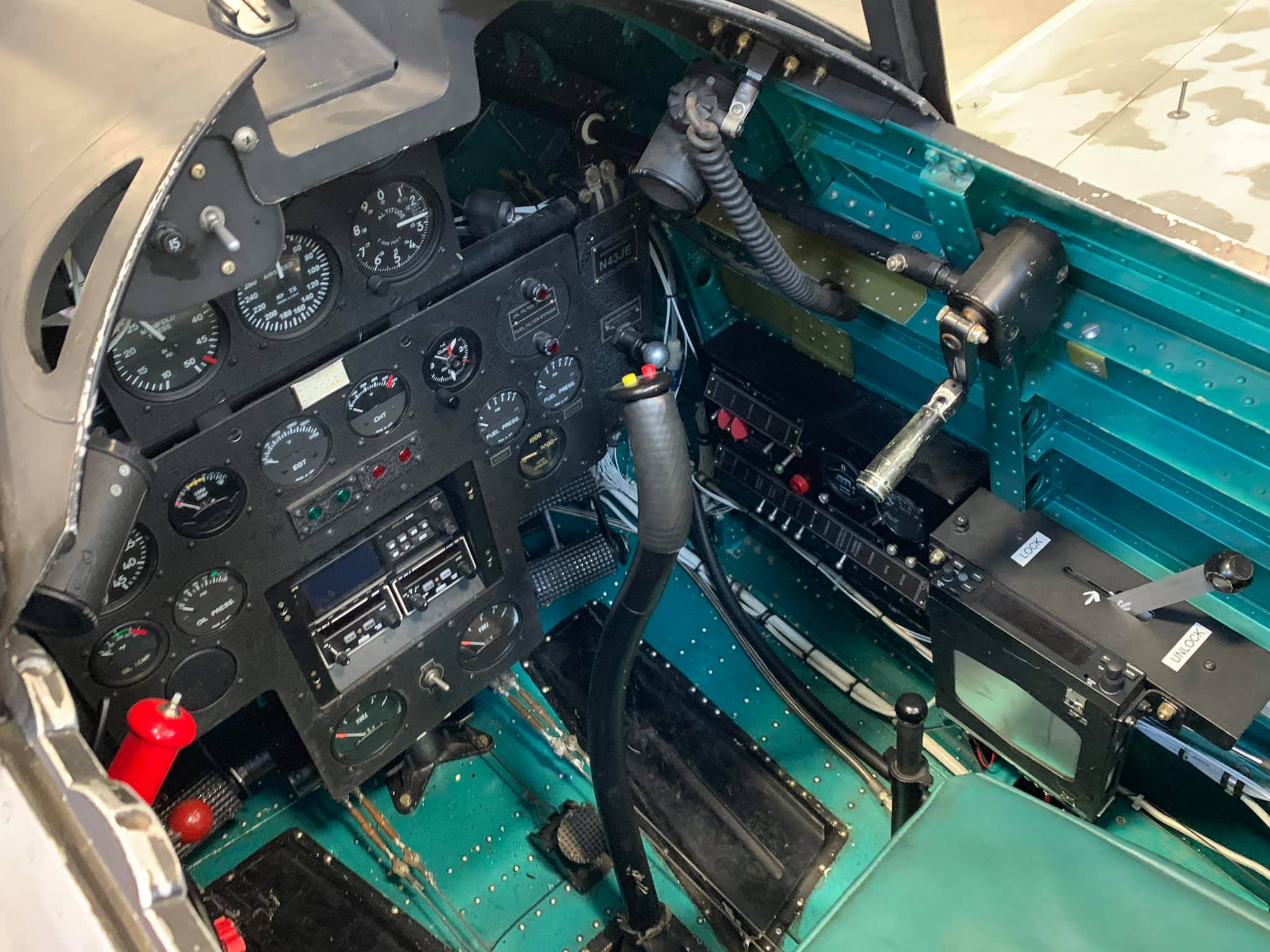

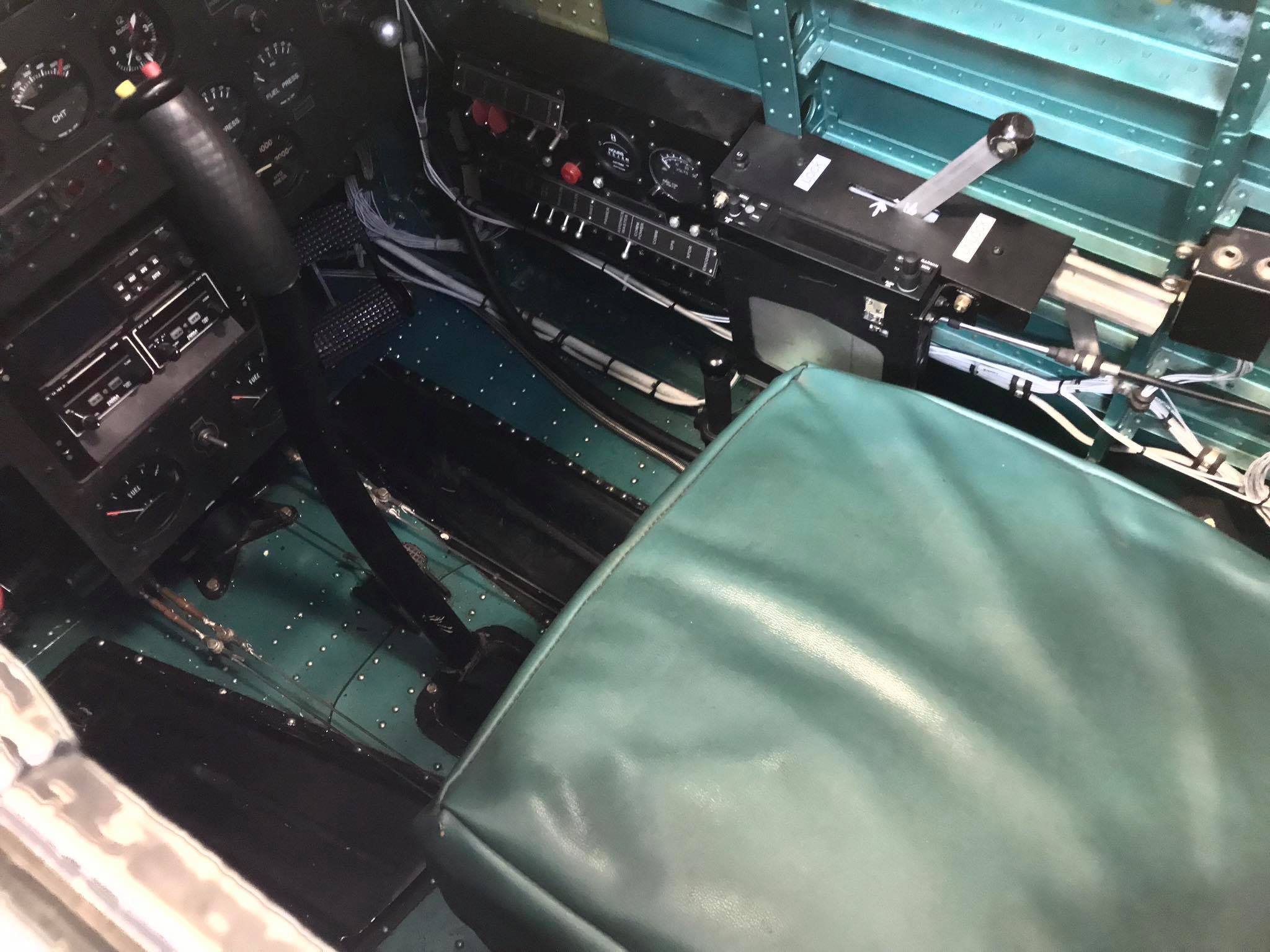

You can see the color of Aotake ( 青竹) (basically translates as “green bamboo“), an anti-corrosion paint used in the landing gear wells. It had no specific color, but was often bright blue-green (U.S. tests showed it to be superior to Zinc Chromate used on U.S. aircraft). The leading edges of the wings have been painted with yellow identification panels as a way to try to avert friendly fire. There is an escape hatch on the port side of the fuselage aft of the cockpit, which allowed the pilot to remove the seat back, which was held in place by spring-loaded pins, and escape through the hatch. There is a trumpet-shaped air intake in front of the engine (similar to one found on some Republic P-47’s), which provided fresh air that was warmed by the engine on its way to warm the cockpit (on the P-47, it also defrosted the windscreen). Here is some information in regard to paint schemes. There was no official color reference system in Japan during the operational period of the Ki-43, and any existing JAAF regulations were seldom carried out to the letter; a wide range of colors and means of application were used.

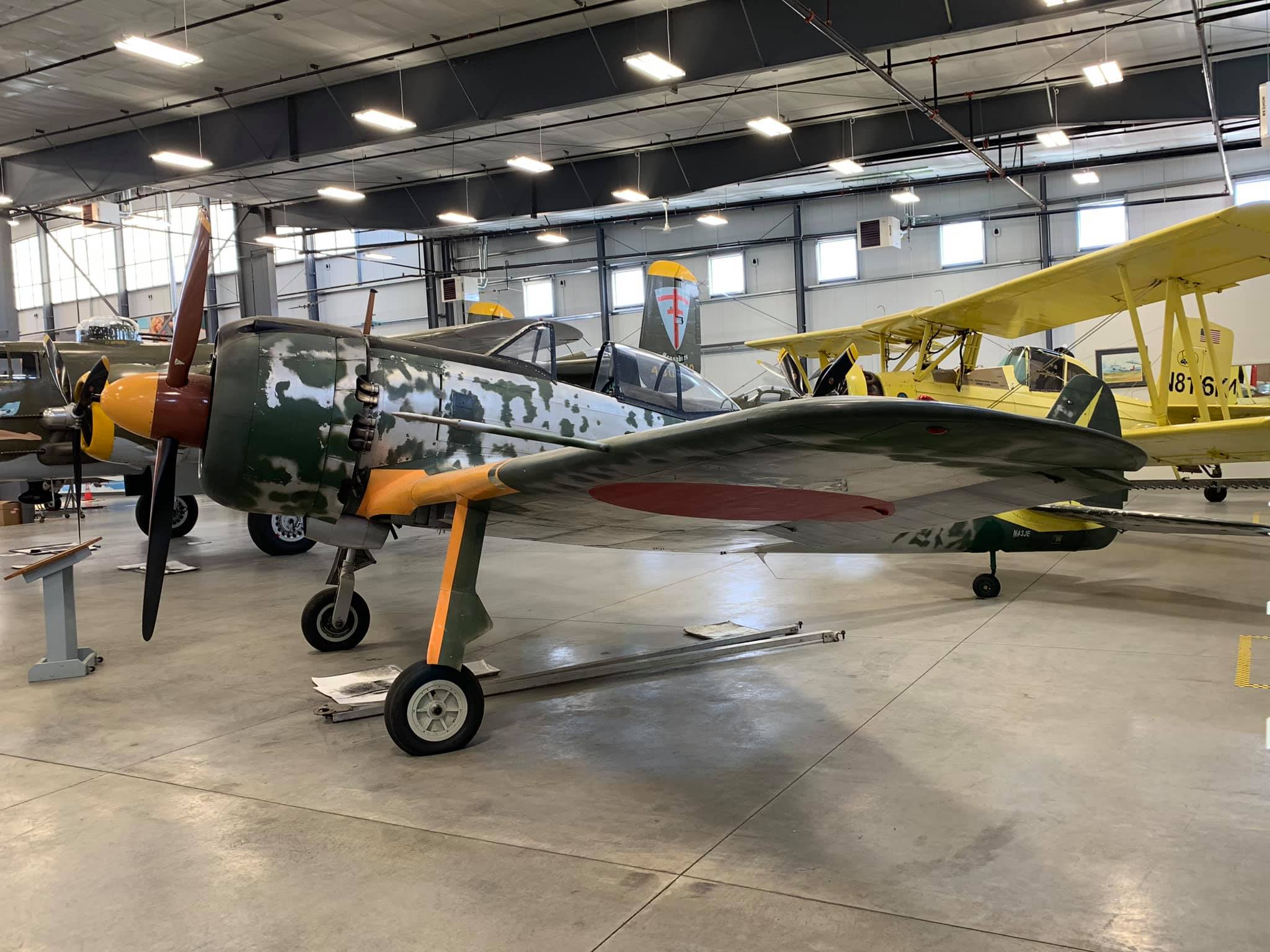

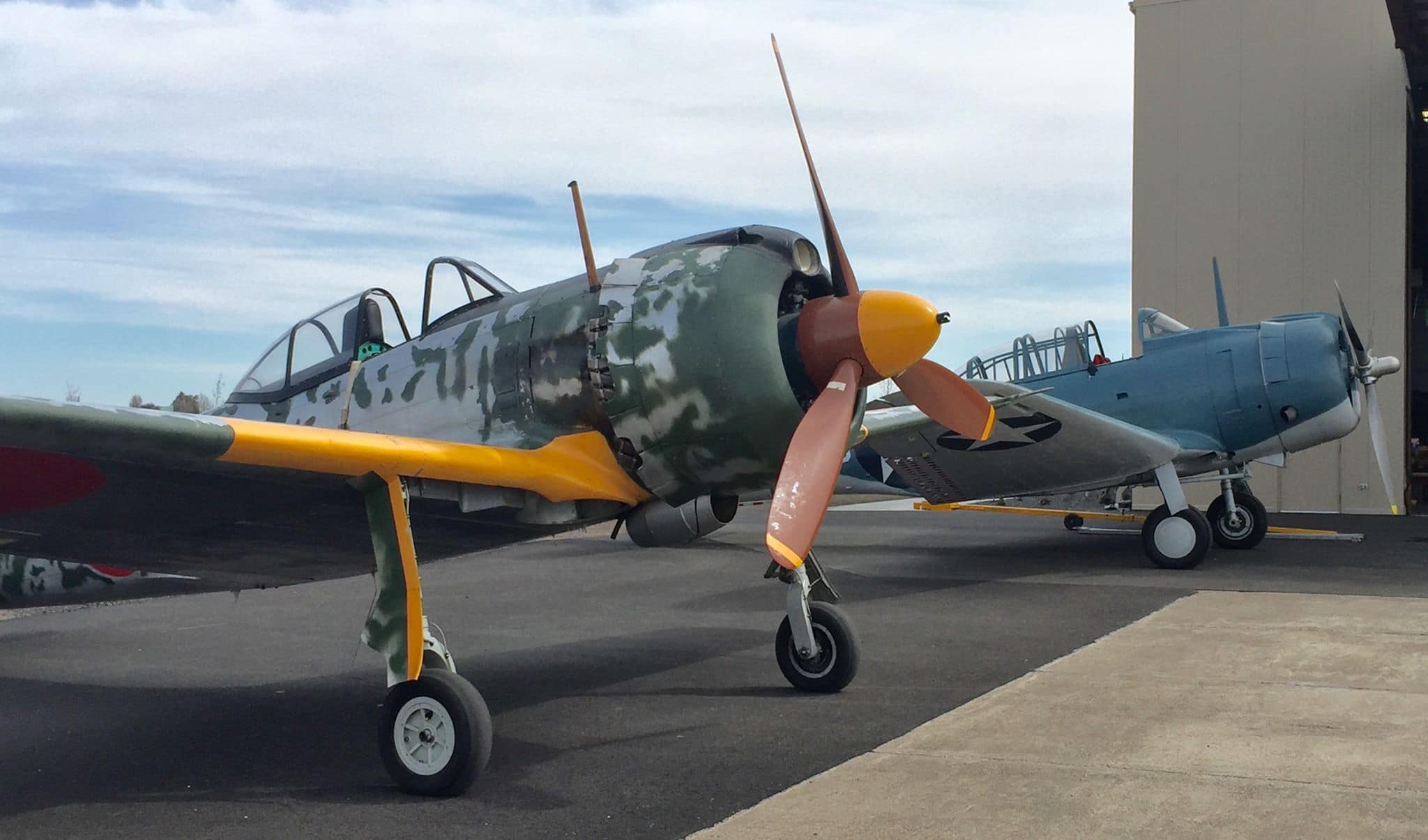

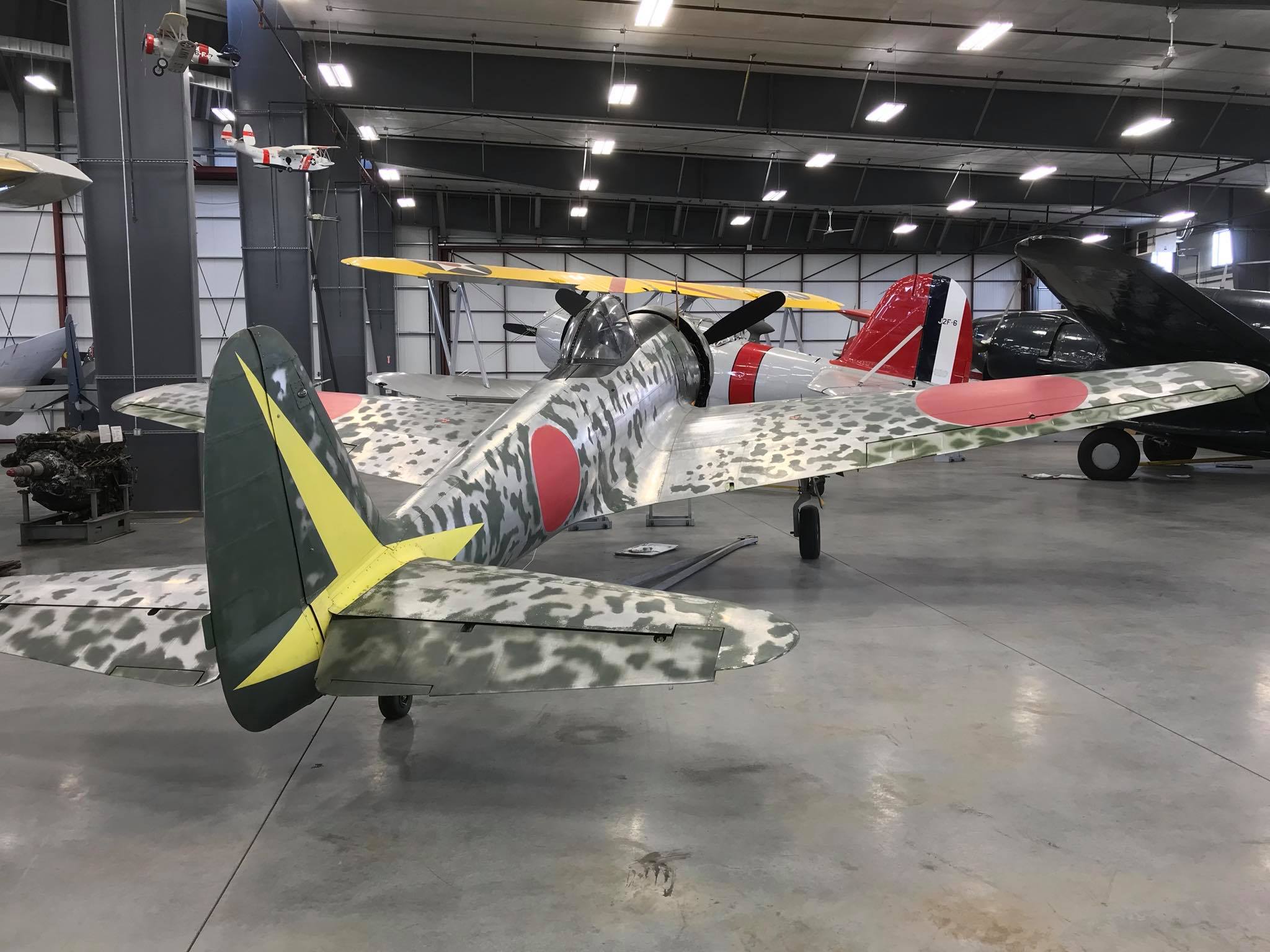

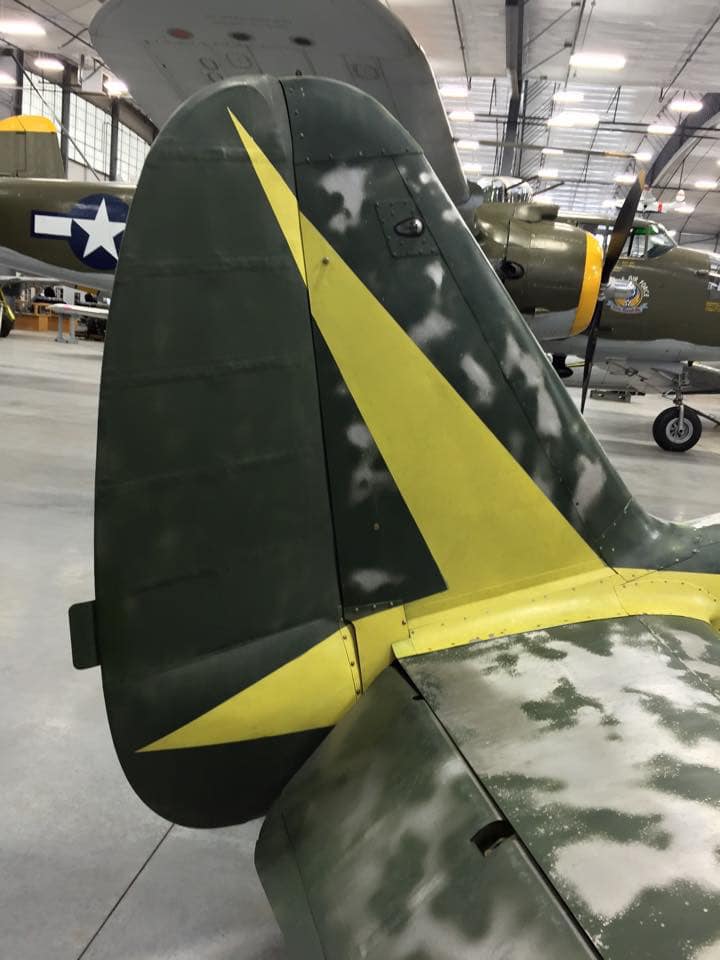

Until the III models all aircraft left the assembly line unpainted except for the iconic Hinomaru (sign of the sun or red disc) on the top and bottom wing surfaces (and on the Model II it was also applied to the fuselage sides), as well as the black anti-glare panel on top of the fuselage from the cowling front to the end of the canopy (although there is some evidence that by the III variant, this was no longer applied) and perhaps some information stencils. Before the III variants, camouflage was applied to many, but not all, frontline aircraft in the field, and was applied using various means, including spraying and hand painting using wide brushes. The choice of painting scheme was the provenance of the local commanders or even ground personnel on paint and means of application on a local level, which included the use of captured Allied paints (unlike the Japanese Navy Air Force, the JAAF itself, at least initially, attached relatively little importance to protective painting). There is evidence that the individual Sentais strove for a uniform look, but under combat conditions, even this was apparently not fully carried out.

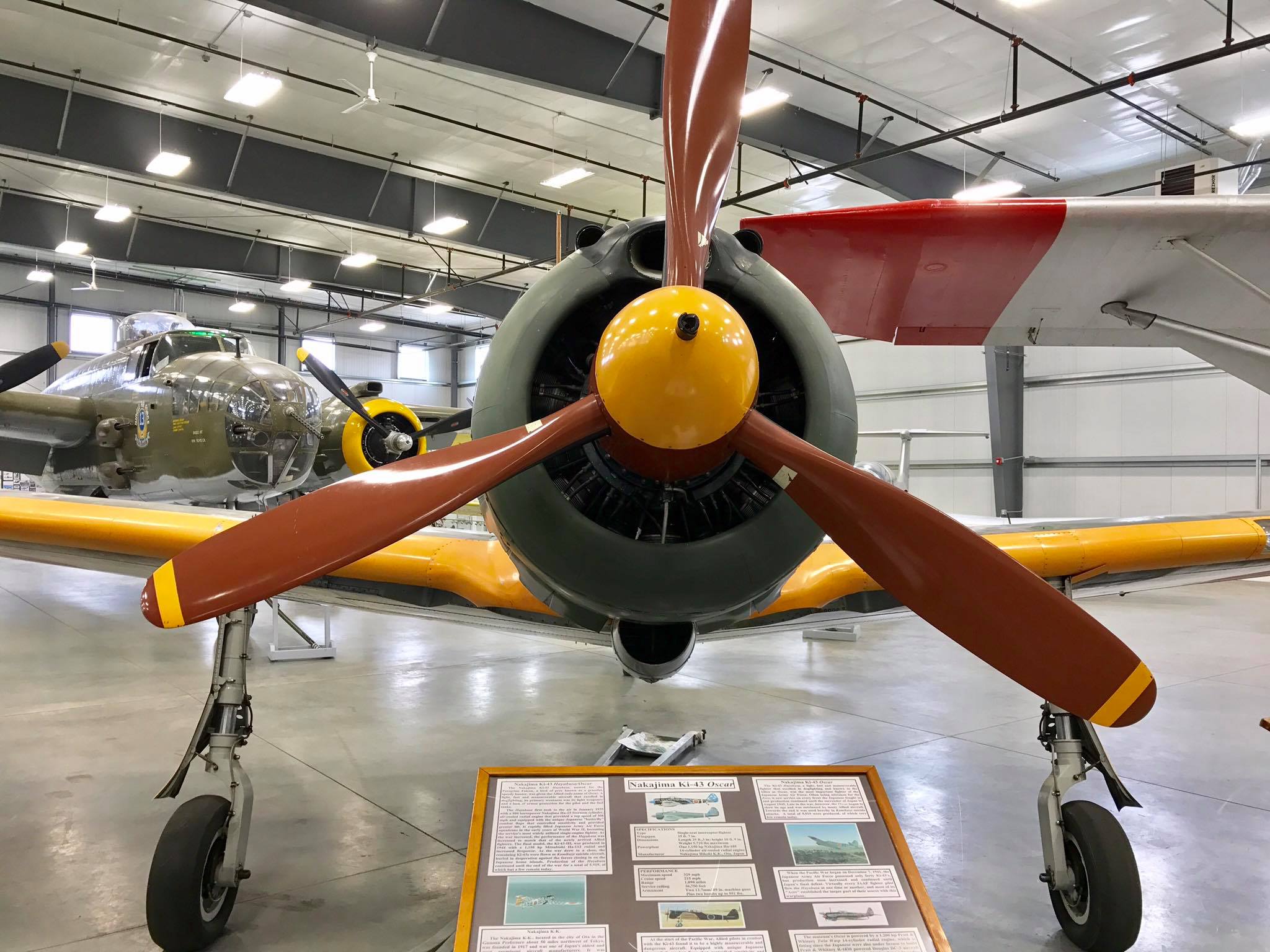

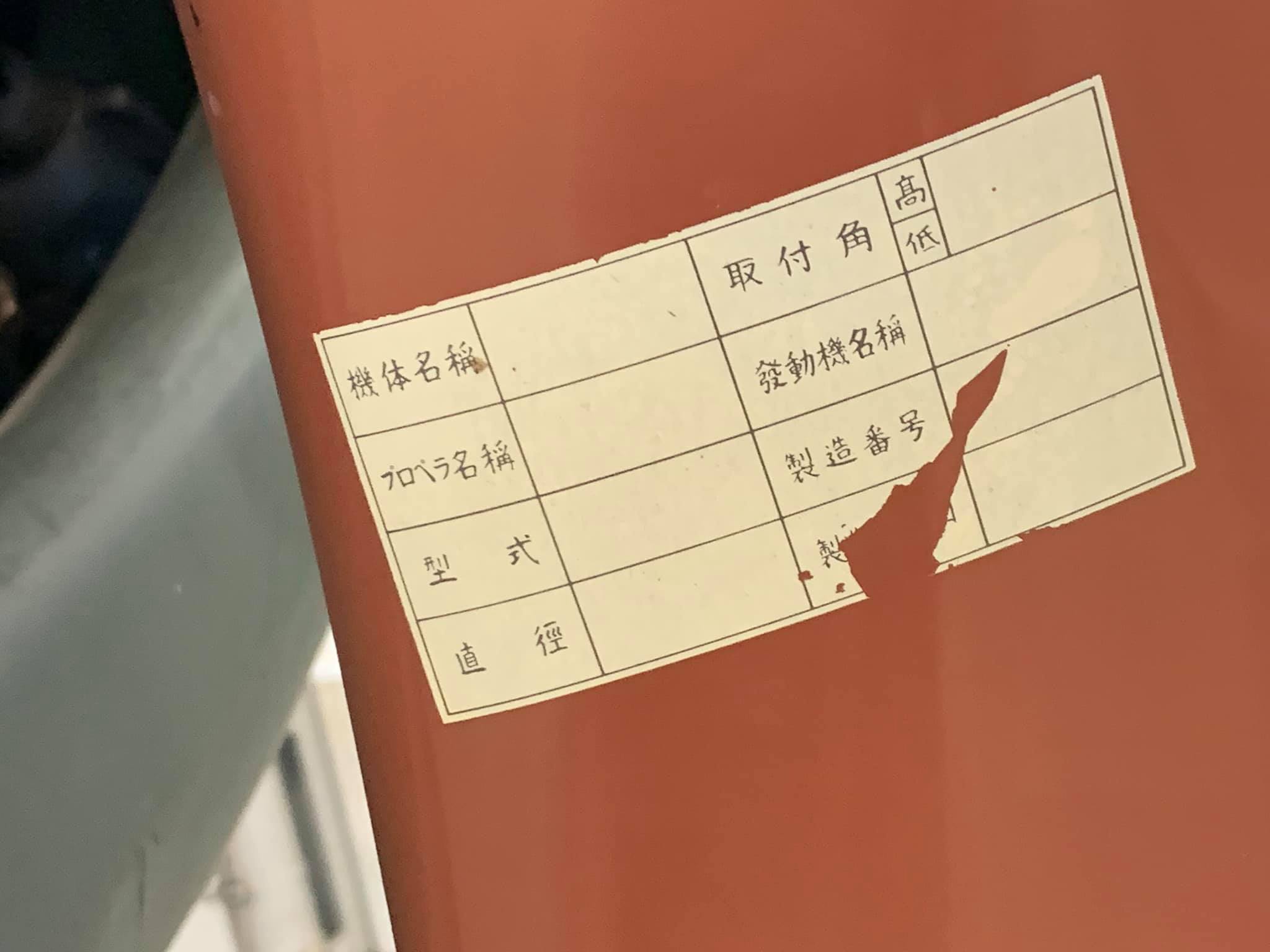

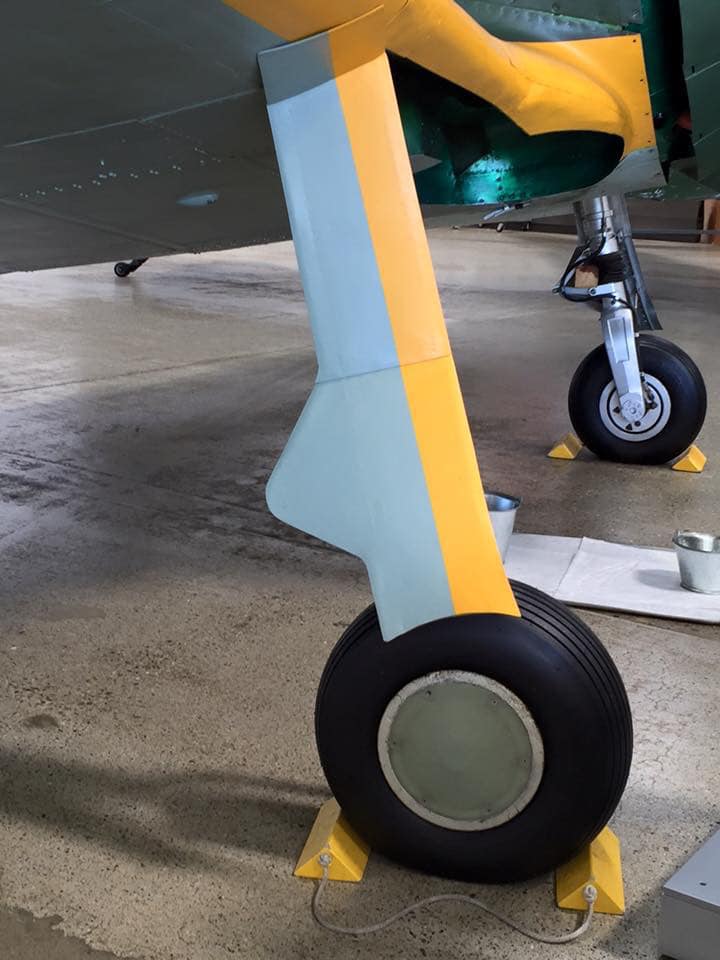

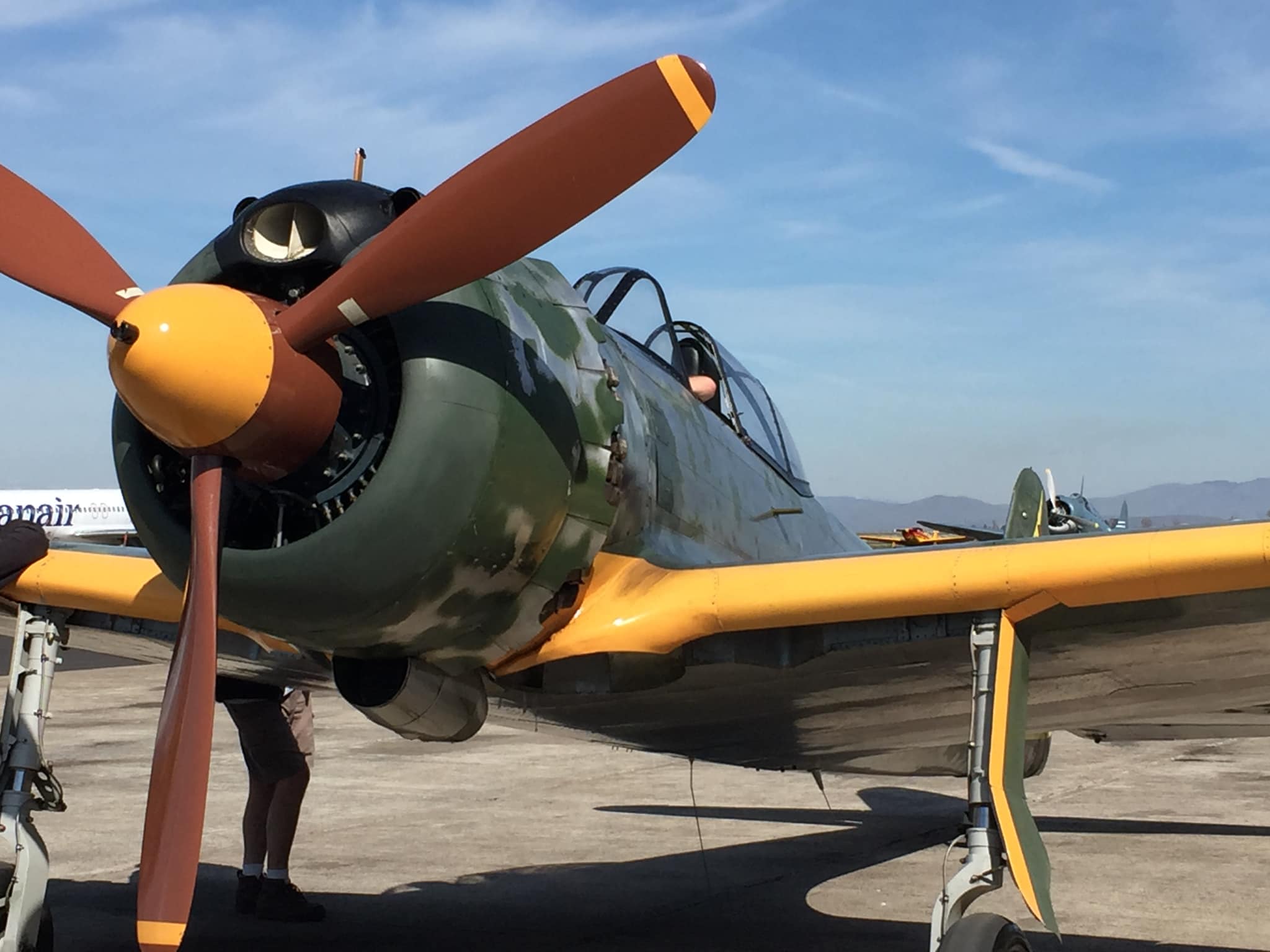

By the III variants, aircraft left the assembly line with largely all the external surfaces painted but unprimed, and with the high amount of cellulose contained in the paints, compounded by climate and lack of maintenance and proper care, all led to rapid fading and weathering. As far as determining the exact colors used, several factors come into play, such as cultural differences between Japan and the Western world, lack of exact equivalents in Japanese and vice versa, as well as issues within Japanese itself in transforming the spoken language to the written one and the language norms of the 1940’s. Propeller front surfaces and spinners were initially unpainted (the backs of the propeller blades were black); from the II variant on, the spinners and both sides of the blades were red-brown, and the warning stripe and the factory stencil on the blades became painted in yellow (although various phases in paint application cannot be used as a means of determining the version type). The undercarriage and small exterior parts were normally not painted; Aotake was used to coat many of the interior surfaces, including wheel wells (although this seems to have been dispensed with in late production aircraft). The cockpit interior, instrument panel, and seat were also painted with an interior color such as olive green or khaki-brown. Unit markings, individual aircraft markings, patriotic and personal markings were also applied in many cases.

---
